简介brief introduction

本机广泛适用于制药、化工、食品等行业的干粉物料混合，对不同比重和不同粒度的几种物料也能进行快速而均匀的混合。该机利用独特的三角摆动，平移转动及摇滚原理，产生一股强力的交替脉冲运动，连续不断地推动进行混合物料，其产生的涡流具有变化的能量梯度，从而能产生出色的混合效果。该机还具有运转平稳、噪音低，装载系数高、混合时间短等优点。
This machine is widely applicable for the mixing of dry powder materials in industries such as pharmaceuticals, chemicals, and food. It can also quickly and evenly mix several materials of different densities and particle sizes. By utilizing the unique triangular oscillation, translational rotation and rocking principles, it generates a powerful alternating pulse movement, continuously pushing the mixed materials. The resulting vortex has a variable energy gradient, thereby achieving excellent mixing results. This machine also has the advantages of smooth operation, low noise, high loading capacity, and short mixing time.

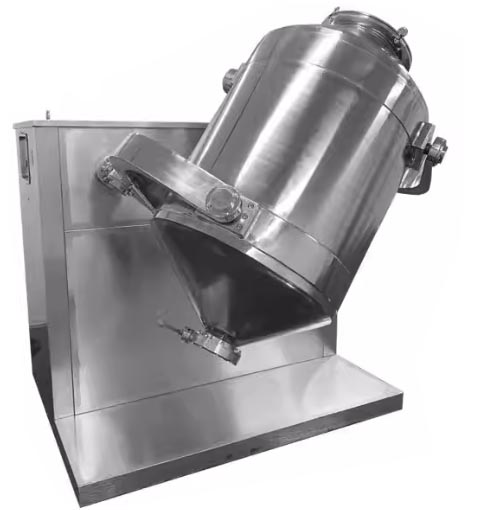

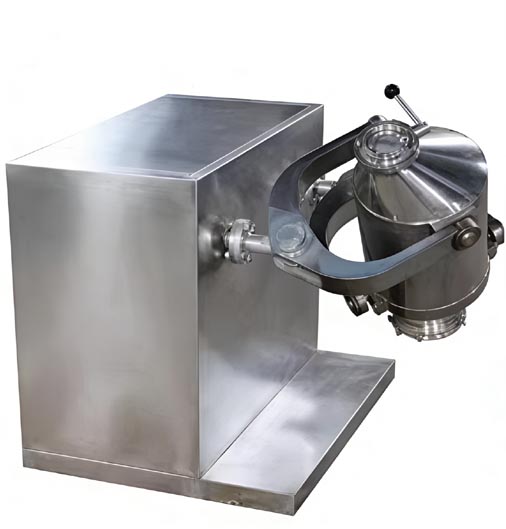

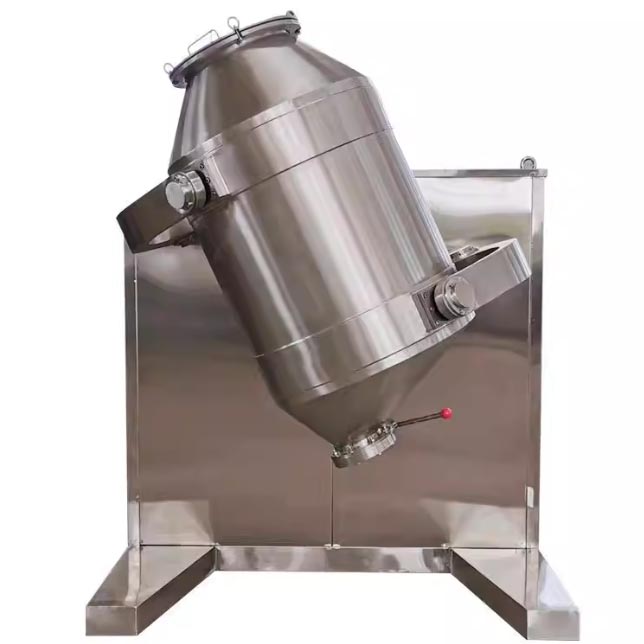

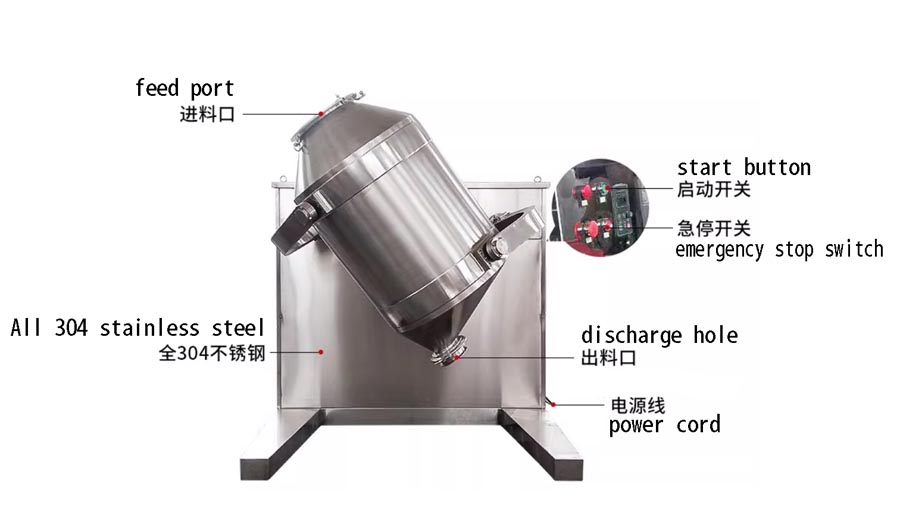

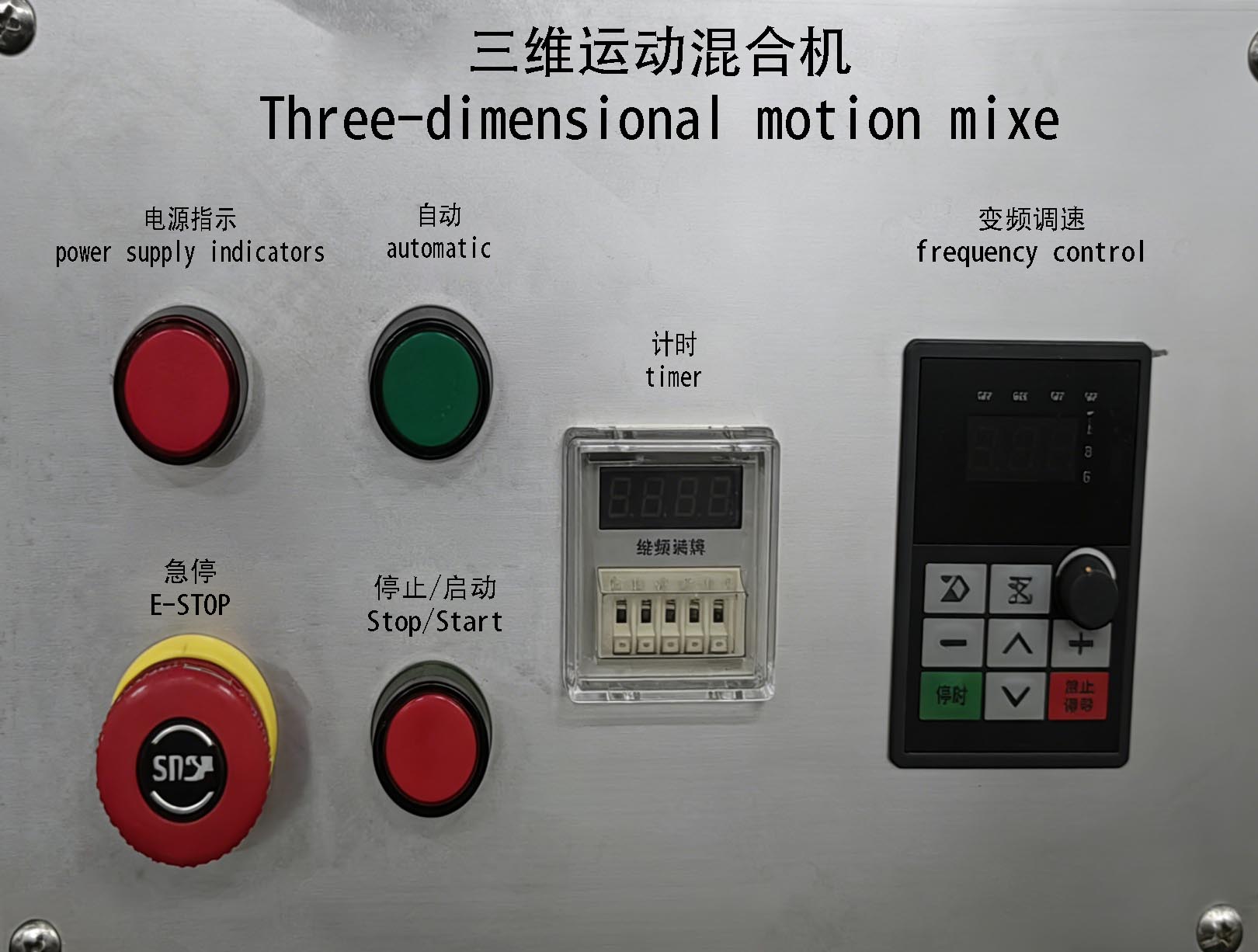

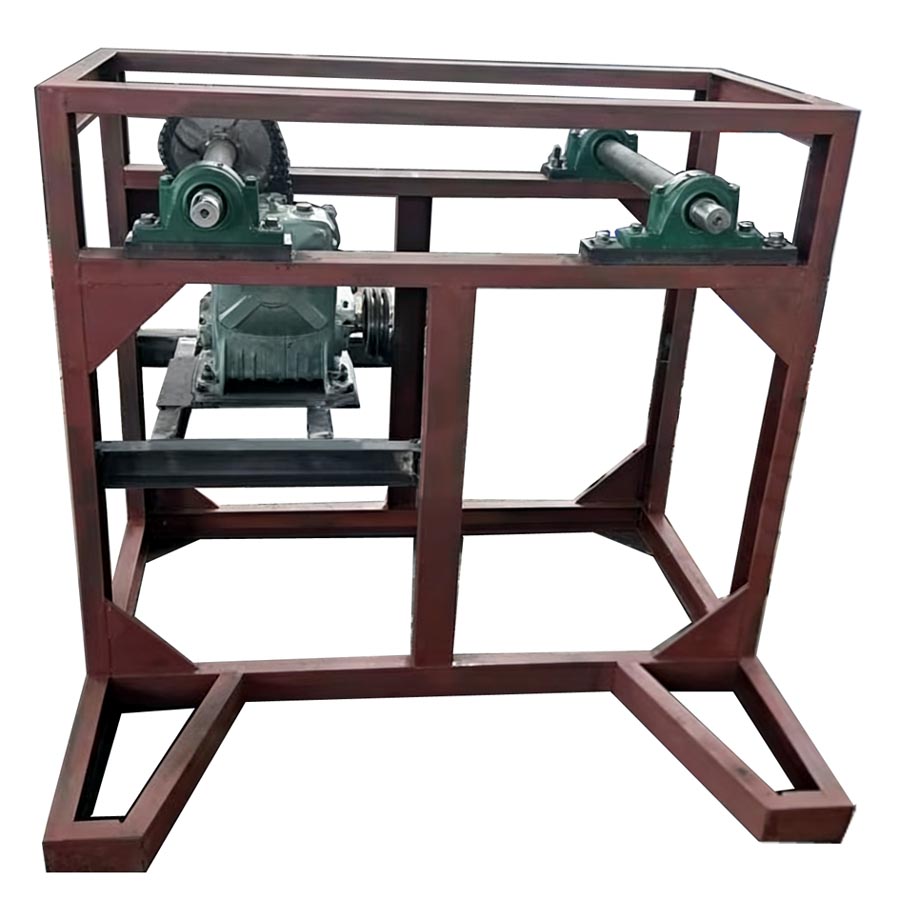

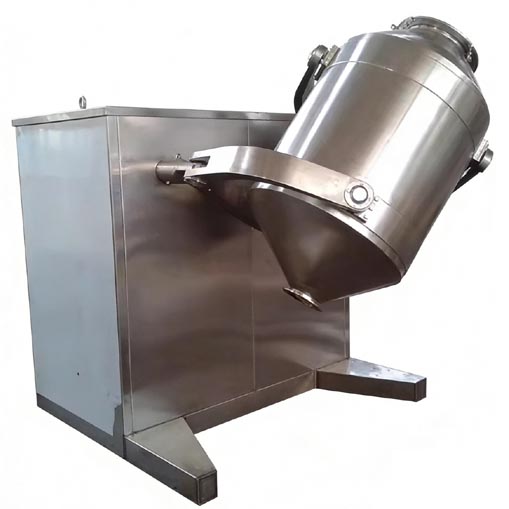

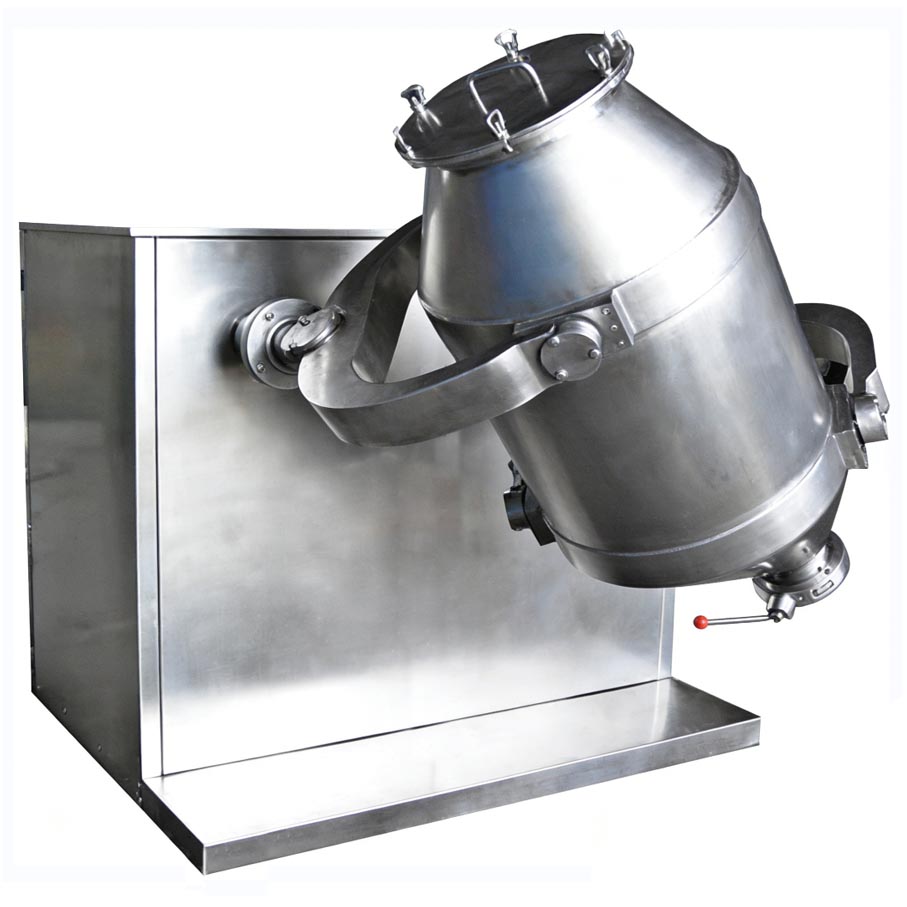

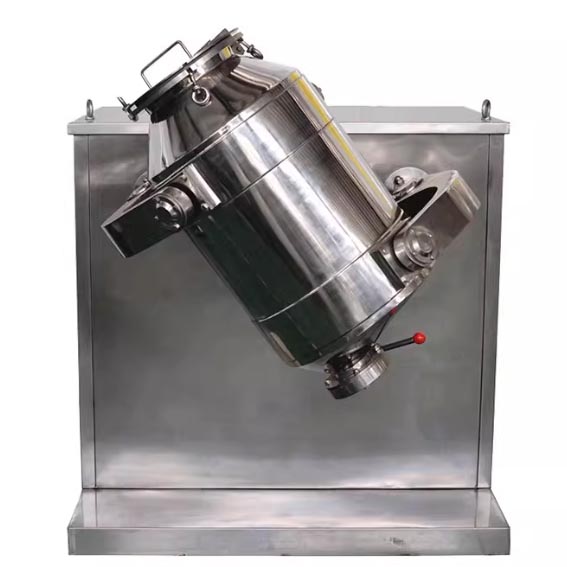

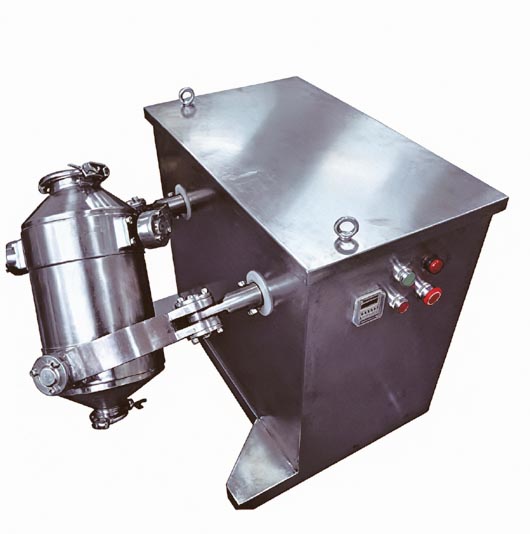

该机有机座、变频制动电机主轴、回转连杆及筒体等部分组成。装料的筒体在主动轴的带动下作平行移动及摇滚等复合运动，促使物料沿着筒体作环向、径向和轴向的三向复合运动，从而实现多种物料的相互流动扩散、掺杂，以达到高均匀混合的目的。
This machine is composed of a base, a variable-frequency braking motor spindle, a rotating connecting rod and a cylinder, etc. The loading cylinder moves in parallel and performs rocking and other compound movements under the drive of the driving shaft, which promotes the material to make three-way compound movements along the circumferential, radial and axial directions within the cylinder, thereby achieving the mutual flow and diffusion, and blending of various materials, in order to achieve the goal of high uniform mixing.

用途及特点 Usage and Features

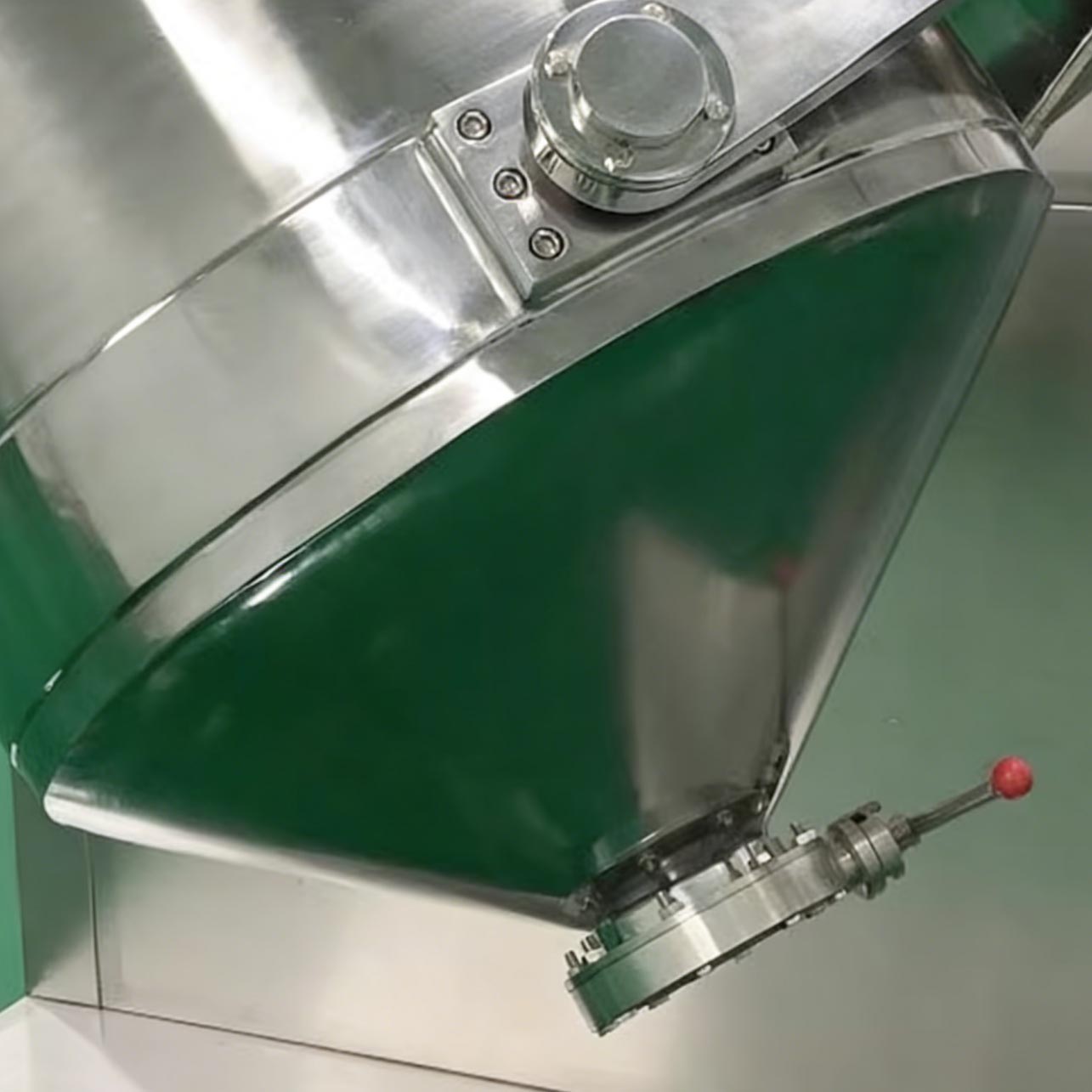

该机用于制药、化工、食品、轻工、电子、机械、矿冶、国防工业以及各科研单位的粉状、颗料状物料的高均匀度混合。物料无离心力作用，无比重偏析及分层、积聚现象，各组分可有悬殊的重量比，混合率达99.9%以上，是目前各种混合机中的一种较理想产品。装料率大，最高可达80%（普通混合机仅为40%），效率高，混合时间短。筒体各处为圆弧过渡，并经过精密抛光处理，达到GMP要求。
This machine is used for high uniformity mixing of powder and granular materials in industries such as pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, defense industry, and various research institutions. The materials are not subjected to centrifugal force, and there is no phenomenon of weight segregation or stratification, accumulation, etc. The components can have a wide range of weight ratios, and the mixing rate can reach over 99.9%. It is a relatively ideal product among various mixing machines at present. The loading rate is high, up to 80% (while ordinary mixing machines only reach 40%), with high efficiency and short mixing time. The entire cylinder has a smooth arc transition and has undergone precise polishing treatment, meeting GMP requirements.

工作原理 working principle

装料的筒体在主动轴的带动下，作周而复始的平移转动和翻滚等复合运动，促使物料沿着筒体作环向、径向和轴向的三向复合运动，从而实现多种物料的相互流动、扩散、积聚、掺杂，达到均匀混合的目的。
The loading cylinder, driven by the main shaft, undergoes repetitive translational rotation and rolling motions, etc., which enables the materials to perform three-dimensional combined movements along the circumferential, radial and axial directions within the cylinder. This promotes the mutual flow, diffusion, accumulation and admixture of various materials, achieving the goal of uniform mixing.
