| 容器罐槽系列》混合机:V型双臂混合机 V-shaped double-arm mixer |
|
| |

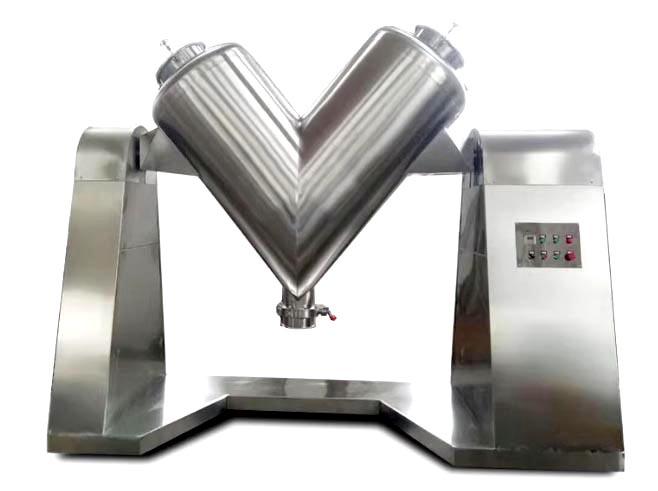

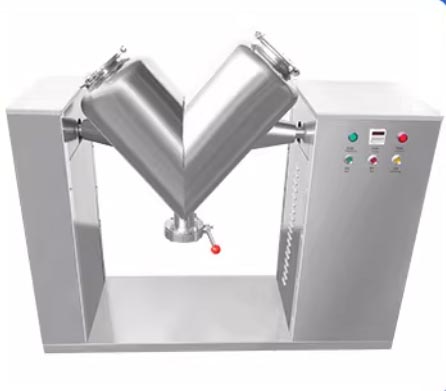

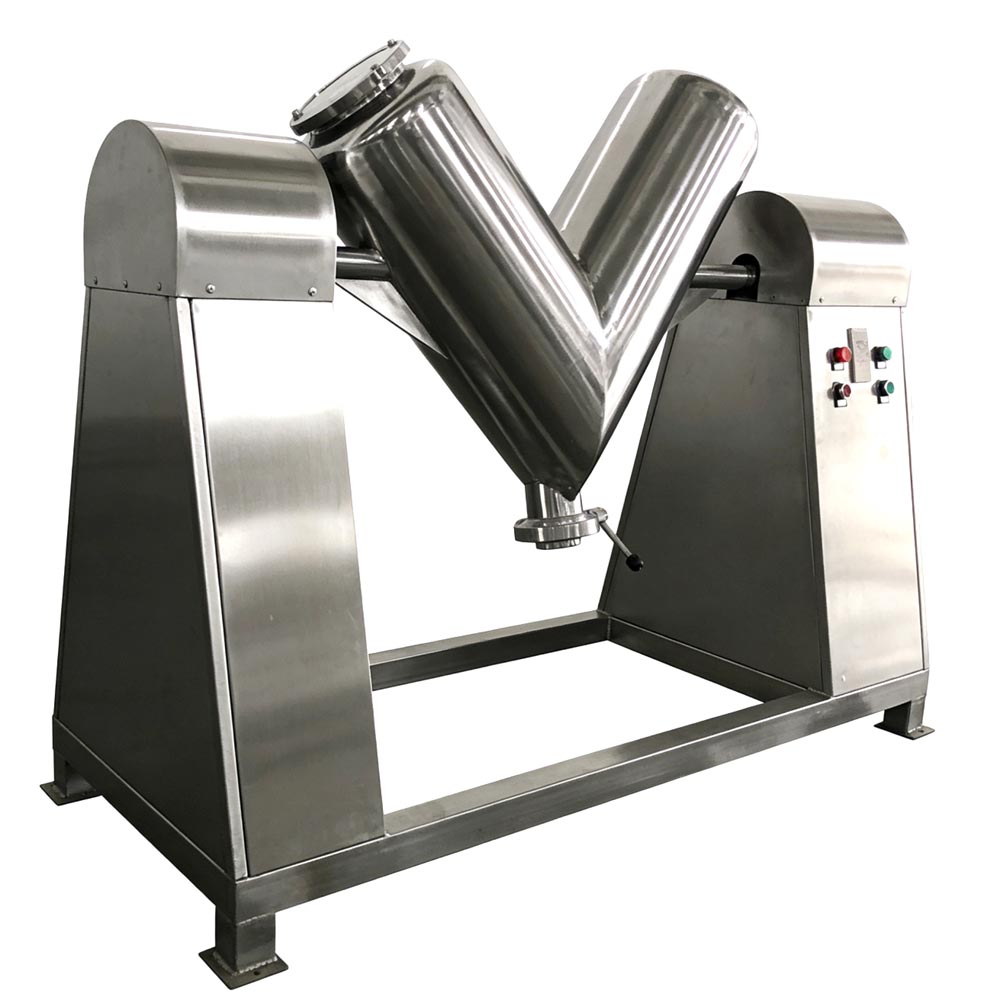

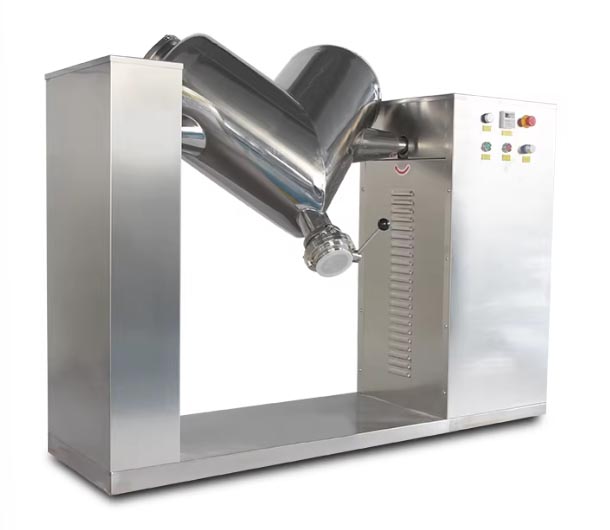

V型双臂混合机?V-shaped double-arm mixer? |
本设备采用手工进料和封闭碟形阀出料结构，可以实行无粉尘操作，同时物料在混合时没有机械挤压和强烈摩擦，可以保持物料颗粒完好无损，本机混合筒采用不锈钢制造，对混合物料无任何污染。另外，本机还装有定时装置，可以控制物料的混合时间。
This equipment adopts a manual feeding structure and a closed disc valve for discharging, enabling dust-free operation. Meanwhile, during the mixing process, there is no mechanical squeezing or intense friction on the materials, ensuring that the material particles remain intact. The mixing cylinder of this machine is made of stainless steel, causing no pollution to the mixed materials. Additionally, this machine is equipped with a timing device to control the mixing time of the materials.
|
|
本机通过减速机构带动筒体旋转，利用混合机两圆柱筒长度的不相等形成的不对称进行混合，当混合机运动时，物料从分解到组合，由于势能的不同，就产生了一个横向力，推动物料进行横向交流。 当物料从组合到分解，由于物料平面不同，就产生了一个横向力又推动物料进行横向交流。 筒体旋转一周，约使 25% 的物料从一个筒体流向另一个筒； 同时筒体旋转时又使物料产生径向流动，这样物料进行横向、径向分解，组合交替进行，使物料达到非常均匀的效果。
This machine drives the cylinder to rotate through a deceleration mechanism. It utilizes the asymmetry formed by the unequal lengths of the two cylindrical barrels of the mixer to carry out the mixing process. When the mixer is in motion, the materials undergo decomposition and recombination. Due to the difference in potential energy, a lateral force is generated, pushing the materials to exchange laterally. When the materials transition from recombination to decomposition, a lateral force is again produced due to the difference in material planes, promoting lateral exchange of the materials. With each rotation of the cylinder, approximately 25% of the materials flow from one barrel to the other. Meanwhile, as the cylinder rotates, it also causes the materials to flow radially. Thus, the materials undergo alternating lateral and radial decomposition and recombination, achieving a highly uniform effect. |
用于混合粉状的物料，使不同质的物料混合均匀。
Used for mixing powdered materials to ensure uniform blending of different types of materials. |
本机适用于制药及其它工业上的干物料颗粒混和之用。
混合筒结构独特、混和功效高、无死角、混和均匀。
This machine is suitable for mixing dry material particles in the pharmaceutical industry and other industrial applications. The mixing cylinder has a unique structure, high mixing efficiency, no dead corners, and ensures uniform mixing.
|
型号
Model |
VH-50 |
VH-100 |
VH-200 |
VH-300 |
VH-500 |
VH-1000 |
VH-1500 |
VH-2000 |
全容积
Full volume (L) |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
2000 |
最佳装量
Optimal dosage (kg) |
10 |
30 |
40 |
60 |
100 |
200 |
300 |
400 |
最大装量
Maximum capacity (kg) |
15 |
40 |
100 |
150 |
250 |
500 |
750 |
1000 |
长×宽×高 Length × Width × Height
(L × W × Hmm) |
1280 × 480 × 1250 |
1580 × 650 × 1460 |
2010 × 850 × 1440 |
2220 × 900 × 1470 |
2550 × 990 × 2250 |
3050 × 1200 × 2580 |
3000 × 1100 × 3110 |
3200 × 1200 × 3350 |
筒体直径
Diameter of cylinder (mm) |
Φ 260 |
Φ 350 |
φ 450 |
φ 500 |
φ 600 |
φ 800 |
φ 900 |
φ 1000 |
进料直径
Diameter of feed (mm) |
φ 150 |
Φ 160 |
Φ 250 |
φ 300 |
Φ 360 |
φ 400 |
φ 400 |
φ 400 |
出料直径
Diameter of discharge (mm) |
φ 80 |
Φ 100 |
Φ 150 |
Φ 200 |
Φ 200 |
Φ 200 |
φ 200 |
φ 200 |
筒体转速
Rotation speed of cylinder ( r/min ) |
20 |
15 |
15 |
15 |
13 |
12 |
10 |
10 |
功率
power (kw) |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
4.0 |
3.0 |
5.5 |
 |

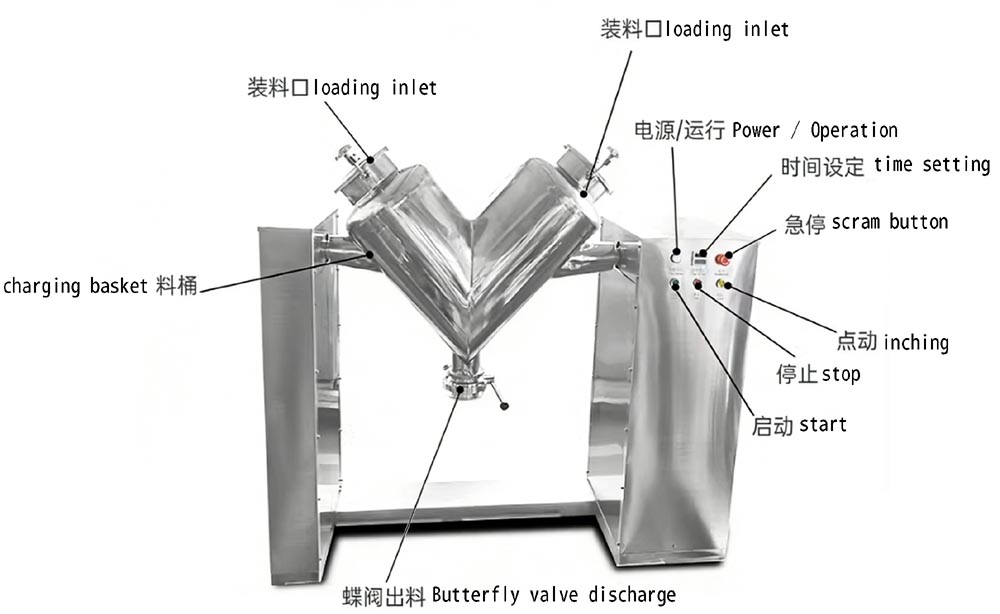

| 01 |
| |
机身外壳
fuselage cover |
采用304不锈钢制造，食品级，易于维护。
It is made of 304 stainless steel, food-grade, and easy to maintain.
|
|
| 02 |
| |

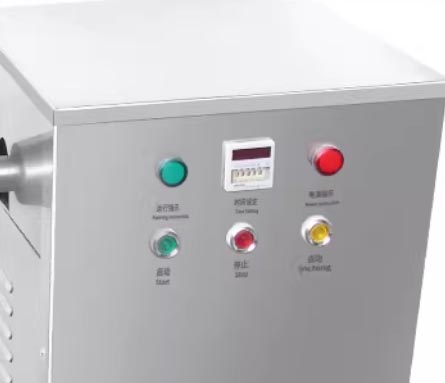

控制面板
control panel |
| 具有主机开、关、点动和定时功能，操作简单方便。It has the functions of starting and stopping the main unit, as well as point motion and timing. The operation is simple and convenient.
|
|
 |
 |
| 03 |
| |

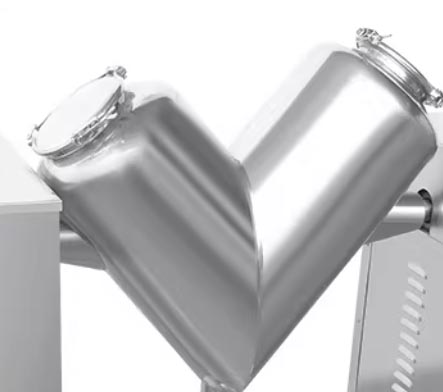

进料口
feed port |
松开螺栓，将物料加入混合仓内。
Loosen the bolts and add the materials into the mixing chamber.
|
|
| 04 |
| |

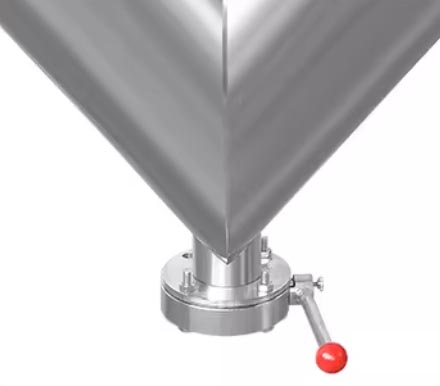

出料口
discharge hole
|
| 物料混合均匀后，打开排料阀，将混合后的物料放入其他容器中。After the materials are thoroughly mixed, open the discharge valve and transfer the mixed materials to other containers.
|
|
 |
|
| |
| |
|
|
